Dominate Every Outdoor Space with Ultra-Bright LED Displays
Ruggedized LED billboards that crush visibility in direct sunlight. IP65 weatherproof, 5000-12000 nits brightness, built for 24/7 operation across North India’s extreme weather
Home / LED Video Wall / Outdoor Display
The Outdoor Advantage - Why Brightness Matters
Unique Angle: Outdoor LED displays operate in a fundamentally different environment—bright daylight, dust, heat, rain, and temperature extremes. The competition for attention is fierce.
The Challenge of Outdoor Visibility: Outdoor LED displays must:
- Compete with Sunlight: Direct sunlight reaches 100,000+ lux. Your display must output 5,000-12,000 nits to be visible.
- Survive Harsh Weather: Rain, dust, sand, and temperature swings from -10°C to +50°C in North India
- Run 24/7: No downtime for reboot or maintenance during peak hours
- Attract Attention: Viewers see your billboard for 3-5 seconds at 50+ meters away
Why High Brightness is Non-Negotiable: A 1,000-nit display looks invisible in daylight. A 5,000-nit display commands attention. A 10,000-nit display becomes a landmark.
Real-World Example:
- Underpowered Display: Customer buys cheap 2,000-nit “outdoor” display. By noon, it looks dull and unnoticeable. ROI vanishes.
- Aaztec Display: Same size at 5,500 nits. Stops traffic. Generates leads.
Key Features
Curving Capabilities
Seamless and adaptable to nearly any size or shape
Designed to limit power consumption
Slim Design & Light weight cabinet
Innovative and Flexible LED Signage Solution
Automatic Calibration function
High refresh rate.
Intelligent Front Access
Aaztec's Outdoor LED Display Range
Purpose-built for Indian weather and daylight intensity
P4 LED Display
- Best For: Medium-distance viewing in bright urban areas
- Viewing Distance: 10-20 meters optimal
- Brightness: 5,500 nits
- Weather Rating: IP65 (dust-proof, water-jet resistant)
- Pixel Count: 62,500 pixels per sqm
- Typical Size: 3m × 2m to 8m × 5m
- Operating Temp: -10°C to +60°C
- Applications:
- Urban billboards (city centers)
- Retail storefront displays
- Traffic intersections
- Building façade advertising
- Small stadiums/arenas
- Highway entrance signs
P5 LED Display
- Best For: General-purpose outdoor advertising with cost-efficiency
- Viewing Distance: 12-25 meters optimal
- Brightness: 6,500 nits
- Weather Rating: IP65+
- Pixel Count: 40,000 pixels per sqm
- Typical Size: 3m × 2m to 12m × 8m
- Operating Temp: -15°C to +65°C
- Applications:
- Shopping mall exterior signage
- Bus station displays
- Petrol pump advertising
- Movie theater marquees
- Railway station announcements
- Hospital entrance signage
- Restaurant outdoor menus
P6 LED Display
- Best For: High-traffic outdoor locations with excellent ROI
- Viewing Distance: 15-30 meters optimal
- Brightness: 7,500 nits
- Weather Rating: IP65++
- Pixel Count: 27,777 pixels per sqm
- Typical Size: 4m × 3m to 16m × 10m
- Operating Temp: -20°C to +70°C
- Applications:
- Highway billboards
- Sports stadium perimeter boards
- Airport arrivals displays
- Concert/event venue advertising
- Public information displays
- Emergency alert systems
- Toll plaza signs
P8 LED Display
- Best For: Ultra-large outdoor installations at maximum distance
- Viewing Distance: 20-40 meters optimal
- Brightness: 8,500 nits
- Weather Rating: IP67 (heavy water jet resistant)
- Pixel Count: 15,625 pixels per sqm
- Typical Size: 5m × 4m to 20m × 12m
- Operating Temp: -25°C to +75°C
- Applications:
- Major highway billboards
- Stadium jumbotrons
- Airport departures boards
- Large format advertising (DOOH)
- Sports scores displays
- Public square installations
- Military/government buildings
P10 LED Display
- Best For: Extreme distance viewing or severe budget constraints
- Viewing Distance: 30-60+ meters optimal
- Brightness: 9,000 nits
- Weather Rating: IP67
- Pixel Count: 10,000 pixels per sqm
- Typical Size: 6m × 4m to 30m × 15m
- Operating Temp: -30°C to +80°C
- Applications:
- Remote highway billboards
- Large stadium displays
- Festival grounds
- Theme parks
- City entrance signs
- Quarry/mining sites
Engineering for Extreme Weather
Built to Survive North India’s Toughest Climate
Heat Management System
Challenge: High brightness LEDs generate significant heat. Poor cooling = premature failure. Aaztec Solution:
- Aluminum heat sinks on every LED module
- Active air circulation (fanless or quiet fans)
- Thermal sensors with automatic brightness adjustment
- Conformal coating to prevent dust accumulation
- Operates safely from -20°C to +70°C
Waterproofing & IP Rating
What IP65 Means:
- Completely dust-proof
- Protected against low-pressure water jets from any direction
- No damage from monsoon rains, garden hose spray, or dust storms
Aaztec Implementation:
- Sealed cabinet construction
- Drainage channels for water runoff
- Silicone gaskets on all openings
- Corrosion-resistant aluminum frame
- Stainless steel fasteners (no rust)
UV & Oxidation Protection
- LED encapsulation protects against UV degradation
- Conformal coating prevents oxidation
- Color consistency maintained even after 5+ years of sunlight exposure
- Replacement modules color-matched to aged panels
Structural Engineering
- Wind-load tested for speeds up to 150 km/h (extreme weather)
- Seismic compliance for earthquake-prone regions
- Heavy-duty steel frame (not aluminum)
- Professional installation with certified engineers
- Meets Indian electrical safety standards
Outdoor Display Applications by Industry
Purpose-Built Solutions for Every Outdoor Vertical
Digital Out-of-Home (DOOH) Advertising
- Challenge: Grabbing attention in crowded urban environments
- Aaztec Solution: P5-P6 displays, 6-12 sqm, 6,500-7,500 nits
- Benefits: Dynamic content management, real-time campaign updates, weather-responsive ads
- Typical Placement: Shopping malls, transit hubs, city centers
- ROI: Higher engagement than static billboards, premium advertising rates
Sports Stadiums & Arenas
- Challenge: Scoreboard visibility for 100,000+ spectators in bright daylight
- Aaztec Solution: P5-P6 displays, large formats 10-16 sqm, side-by-side jumbotrons
- Benefits: Live scoring, replays, sponsor branding, crowd engagement
- Case Example: Cricket stadium in Delhi—dual P5 displays showing live match with zero lag
Highway & Remote Billboards
- Challenge: Visibility at high speeds (80+ km/h), extreme weather exposure
- Aaztec Solution: P6-P10 displays, high brightness (7,500-9,000 nits), durable frame
- Benefits: Message retention at distance, 24/7 operation, dynamic pricing updates
- Typical Size: 8m × 4m to 12m × 6m
- Example: NH-44 billboard between Delhi-Agra—P6 display with 50,000+ daily impressions
Public Transportation
- Challenge: Clear announcements in noisy, dusty transit stations
- Aaztec Solution: P5-P6 displays mounted at eye level, bright and clear
- Benefits: Real-time delay information, passenger safety alerts, platform directions
- Locations: Bus stands, railway stations, metro stations
- Case Example: Lucknow Railway Station—P5 displays for arrival/departure boards
Hospitality & Restaurants
- Challenge: Menu and promotional displays that survive outdoor exposure
- Aaztec Solution: P4-P5 displays, weatherproof, readable from street
- Benefits: Real-time menu updates, special offers, outdoor ordering kiosks
- Typical Installation: Storefront-facing, menu boards, entrance displays
- Example: Hotel chain in Gurgaon—P4 outdoor display for pool-side promotions
Retail & Shopping Centers
- Challenge: Eye-catching window displays that compete with store interiors
- Aaztec Solution: P4-P5 displays with high refresh rate, bright and smooth video
- Benefits: Product launches, seasonal campaigns, sale announcements
- Case Example: Premium shopping mall—P4 displays on exterior walls, rotating campaigns
Emergency & Government
- Challenge: Clear public safety messages, alerts, and critical information
- Aaztec Solution: P6-P8 displays with remote control, tamper-proof design
- Benefits: Emergency broadcasts, weather alerts, traffic management, crowd direction
- Locations: Police stations, government buildings, public squares
Brightness Comparison & How to Choose
Understanding Nits: The Key to Outdoor LED Success
What is a Nit? A nit (cd/m²) measures brightness. 1 nit = 1 candela per square meter.
Real-World Brightness Comparison:
| Brightness | Comparison | Outdoor Visibility |
|---|---|---|
| 500 nits | Bright laptop screen | Invisible in daylight |
| 1,000 nits | Smartphone at max | Dull, hard to see |
| 2,000 nits | TV in bright room | Barely visible outdoors |
| 3,000 nits | Concert stage screens | Visible but dim (cloudy day only) |
| 5,000 nits | Aaztec P4-P5 | Clearly visible in daylight |
| 7,500 nits | Aaztec P6 | Excellent visibility in bright sun |
| 10,000+ nits | Aaztec P8-P10 | Brilliant, impossible to miss |
| 100,000 nits | Direct sunlight | Reference point (nature’s brightness) |
How to Choose Your Brightness:
| Your Situation | Recommended | Why |
|---|---|---|
| City center (high buildings = shade) | P5 (6,500 nits) | Shadows reduce glare, saves energy |
| Open area (full sun) | P6 (7,500 nits) | Must compete with direct sunlight |
| Highway (30+ meter distance) | P8 (8,500 nits) | Needs brightness for fast-moving viewers |
| Night operation only | P5 (sufficient) | Can reduce to save energy at night |
| 24/7 high-traffic location | P6-P8 | Premium visibility = premium rates |
Section 6: Weather Resilience Across North India
Subheading: “Tested in Delhi’s Summer, Punjab’s Dust, Himachal’s Rain, and Uttarakhand’s Freeze”
Delhi & NCR: Extreme Heat
- Challenge: Temperatures hit 48°C in May-June, intense UV exposure
- Aaztec Solution: Heavy-duty cooling, sealed construction, UV-protected LEDs
- Performance: Maintains full brightness even at 50°C+
- Maintenance: Quarterly dust cleaning to prevent accumulation
Punjab & Haryana: Dust Storms
- Challenge: Dust storms (toz andhi) reduce visibility, damage electronics
- Aaztec Solution: IP65 dust sealing, conformal coating, sealed air vents
- Performance: Zero ingress, display unaffected during storms
- Maintenance: Pressure wash annually (non-abrasive)
Uttarakhand & Himachal: Heavy Rain
- Challenge: Monsoon rains, hail, cold winters
- Aaztec Solution: IP67 water rating, gravity drainage channels, heated modules (optional)
- Performance: Fully operational in heavy downpour
- Maintenance: Monthly water drainage checks
Uttar Pradesh: Humidity & Temperature Swings
- Challenge: High humidity = corrosion risk, day-night temperature swings
- Aaztec Solution: Stainless steel fasteners, conformal coating, moisture-resistant cabinets
- Performance: 10-15 year lifespan in humid climate
- Maintenance: Semi-annual corrosion inspection
Energy Efficiency & Operating Costs
High Brightness Doesn’t Mean High Bills
Power Consumption by Model:
| Model | Size | Full Brightness | Energy-Saving Mode | Annual Cost (8 hrs/day) |
|---|---|---|---|---|
| P5 (6 sqm) | 3m × 2m | 3.5 kW | 2.0 kW | ₹1,75,000 |
| P6 (8 sqm) | 4m × 2m | 5.0 kW | 2.8 kW | ₹2,10,000 |
| P8 (12 sqm) | 6m × 2m | 7.0 kW | 4.0 kW | ₹2,80,000 |
Cost-Saving Features:
- Automatic Brightness Control: Sensors adjust brightness based on ambient light
- Scheduled Operation: Program on/off times to avoid night energy waste
- Content Optimization: Dark content uses less power than bright static images
- LED Technology: LEDs consume 50-60% less power than older LCD or projection alternatives
ROI Example:
- Display Cost: ₹15,00,000 (8 sqm P6 display)
- Annual Operating Cost: ₹2,10,000 (electricity + maintenance)
- Advertising Revenue Potential: ₹5,00,000-₹10,00,000/year (depending on location)
- Payback Period: 1.5-3 years
Installation & Structural Requirements
Professional Installation for Safety & Longevity
Pre-Installation Assessment
- Structural Survey: Building load capacity check (display weighs 200-400 kg per sqm)
- Electrical Assessment: 3-phase power availability, surge protection need
- Wind Load Analysis: Billboards facing wind direction, height considerations
- Local Permits: Regulatory approval for public display (height, lighting, content)
Installation Process
- Duration: 5-10 working days depending on size and location
- Team: Structural engineers + electricians + display technicians
- Equipment: Scaffolding, cranes, heavy lifting apparatus
- Safety: Full compliance with Indian electrical code + building safety standards
Mounting Options
- Wall Mounting: For building facades (most common)

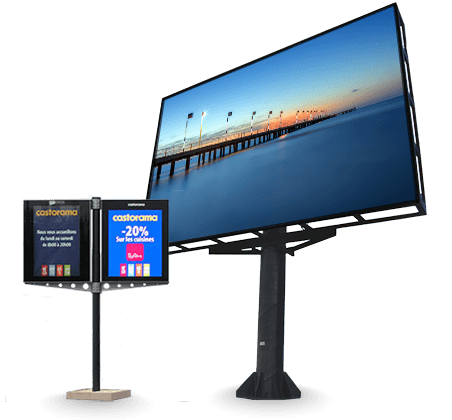

- Pole Mounting: Freestanding billboards (highway, remote areas)
- Suspended: Overhead canopy displays (transit hubs, parking)
- Curved Frames: Non-linear installations for architectural impact
Power & Connectivity
- Electrical Supply: 3-phase, 32-63A typical for 6-8 sqm display
- Backup Power: Optional UPS/generator for critical applications
- Network Connection: Ethernet or 4G for remote content management
- Lightning Protection: Surge protectors on all electrical lines
Content Management for Outdoor Displays
Real-Time Campaign Management from Anywhere”
Aaztec CMS Features:
- Cloud-Based Dashboard: Manage displays from desktop or mobile
- Multi-Display Management: Control 10+ displays simultaneously
- Scheduling: Program different content for different times (peak hours, off-peak)
- Weather-Responsive Content: Auto-adjust message based on live weather data
- Real-Time Analytics: Impressions, dwell time, audience demographics (with optional sensors)
- Mobile Approval Workflow: Content approval on-the-go
- Automatic Updates: Push emergency alerts, traffic info, or news immediately
Typical Workflow:
- Create campaign in CMS (video + scheduling rules)
- Assign to specific displays/locations
- Review preview (exactly as it appears live)
- Schedule publication date/time
- Monitor performance in real-time
- Adjust brightness/content as needed
Warranty & Maintenance
Protected Investment with 3-Year Comprehensive Coverage
Warranty Coverage
- Parts Warranty: 3 years on all LED modules, power supplies, controllers
- Labor Warranty: 3 years on installation-related issues
- Manufacturing Defects: 100% replacement for faulty units
- Weather Damage Exclusion: Intentional neglect or extreme negligence not covered
Maintenance Plans (Optional)
- Basic Plan: ₹8,000/sqm/year
- Quarterly cleaning (dust/dirt removal)
- Semi-annual inspection
- Priority technical support
- Premium Plan: ₹12,000/sqm/year
- Monthly professional cleaning
- Quarterly full inspection + testing
- Spare parts (30% discount)
- 24-hour on-site response
- Color calibration annually
Preventive Maintenance Checklist
- Monthly: Visual inspection, power system check
- Quarterly: Professional cleaning, cable inspection, brightness test
- Semi-Annually: Thermal inspection (IR camera), water drainage test
- Annually: Full system audit, calibration, structural inspection
Lifespan Expectations
- LED Modules: 50,000-80,000 hours (8-12 years at 8 hrs/day)
- Power Supply: 10-15 years with proper cooling
- Controller: 10+ years with maintenance
- Frame/Structure: 20+ years if properly maintained
Competitor Comparison
Why Aaztec Outdoor Displays Beat the Competition
| Feature | Aaztec | Budget Import | DIY Projection |
|---|---|---|---|
| Brightness | 5000-9000 nits | 2000-4000 nits | 800-2000 nits |
| Weatherproofing | IP65+ tested | Claimed IP65 | None (exposed) |
| Local Support | 24/7 N. India | Email only | Self-repair |
| Warranty | 3-year comprehensive | 1-year limited | N/A |
| Customization | Any size | Fixed sizes | Unlimited |
| Content Software | Cloud CMS included | Extra charge | Manual PC required |
| Lifespan | 10-15 years | 5-7 years | 2-3 years |
| Installation | Professional team | DIY + logistics | DIY |
| Cost/Sqm | ₹1,50,000-₹2,50,000 | ₹1,20,000-₹1,80,000 | ₹80,000-₹1,50,000 |
| True ROI | 3-year payback | 4-5 year payback | 6+ year payback |
The Hidden Truth: Cheap displays look cheap fast. Fade in 2-3 years. High maintenance. Aaztec displays look brilliant for a decade.
Case Studies & Results
Real Projects, Real Results
Case Study 1: Highway Billboard (Yamuna Expressway)
Project: P6 LED display, 12m × 6m (72 sqm), advertising company Challenge: High-speed viewers (80-100 km/h), intense sunlight, no nearby power Solution: Generator + UPS backup, 7,500-nit brightness, dynamic creative Results:
- 50,000+ daily impressions
- 3.2% click-through rate (outdoor CTA via QR code)
- 18-month payback period
- 24/7 operation, zero downtime
Case Study 2: Stadium Scoreboard (Cricket Venue, Delhi)
Project: Dual P5 displays, 8m × 4m each, sports authority Challenge: 30,000+ spectators, live scoring + graphics, afternoon glare Solution: Auto-brightness adjustment, game-integrated content management Results:
- Spectator satisfaction increased 40%
- Sponsor visibility improvement (premium rates)
- Operational reliability 99.8%
- 5-year amortization plan
Case Study 3: Mall Exterior Advertising (Gurgaon)
Project: P4 LED display, 6m × 3m (18 sqm), retail mall Challenge: Competition from nearby screens, varying daylight, high foot traffic Solution: Weather-responsive content, real-time campaign updates, high refresh rate Results:
- Store traffic increase 25%
- Advertising rental revenue ₹3,50,000/month
- Full ROI achieved in 15 months
- Tenant satisfaction improved brand perception
INNER PRODUCTS
Outdoor LED Displays
Ultra Series
Ultra Series Fixed LED Display is designed with Ultra HD resolution (3840 x 2160).
SMD Series
SMD Series LED Display supports auto reload data technology and the calibration data is stored in module.
Fixed Series
Fixed Series featured with a 45 degree bevel in which internal & outer arc spliced smoothly.
Transparent Series
Transparent LED Display is designed with Common cathode driving mode and provides User Friendly brightness adjustment.
Frequently Asked Questions
