Monitor Everything, Control Everything with Precision LCD Video Walls
Ultra-thin LCD displays engineered for mission-critical 24/7 operations. Minimal bezels, perfect color fidelity, and rock-solid reliability for control rooms, security centers, and broadcast studios.
Home / LED Video Wall / LCD Video Wall

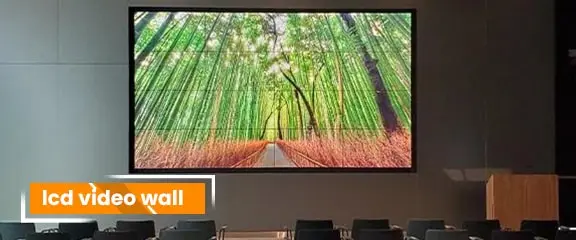

LCD Video Wall
LFD displays, or large format displays, are designed to be used in large spaces such as shopping malls, airports, and sports stadiums. These displays are typically very large, with screen sizes ranging from 32 inches to over 100 inches. They are designed to be bright and clear, with high resolution and excellent colour reproduction. LFD displays are ideal for displaying large images or videos and can be used for everything from advertising to informational displays.
LCD vs LED - Choosing the Right Display Technology
LED and LCD are fundamentally different technologies designed for different missions. Choosing wrong wastes money.
The Technology Difference:
| Aspect | LCD Video Wall | LED Display |
|---|---|---|
| Technology | Liquid Crystal liquid backlit by LEDs | Individually addressable LEDs |
| Bezel Size | 1.8mm-3.5mm (very thin) | 0mm (seamless) |
| Individual Pixel Control | Yes (per-pixel brightness) | Yes (per-pixel color) |
| Color Accuracy | Professional calibration (Delta E < 1) | Good but less precise |
| Brightness | 300-700 nits | 1000-2000+ nits |
| Viewing Angle | Wide (178°+) | Good (160°+) |
| Lifespan | 30,000-50,000 hours | 50,000-80,000 hours |
| Cost/Sqm | ₹1,50,000-₹3,50,000 | ₹1,00,000-₹2,50,000 |
| Best Use Case | Color-critical work, 24/7 operations | Advertising, events, high brightness needed |
| Power Draw | 400-600W/sqm | 600-1200W/sqm |
When to Choose LCD:
- Color accuracy is critical (medical imaging, design work)
- 24/7 continuous operation (uptime > 99%)
- Indoor environment with controlled lighting
- Precise, detailed content (maps, diagrams, numbers)
- Minimal eye fatigue for 8-12 hour shifts
- European/US regulatory compliance required
When to Choose LED:
- Outdoor installation (sunlight exposure)
- Ultra-bright displays needed
- Any-size customization required
- Long-distance viewing (50+ meters)
- Digital advertising/entertainment
Why Control Rooms Choose LCD
The Technology Trusted by Mission-Critical Operations
Real-World Challenge: The 24/7 Operator’s Dilemma
Imagine a power plant control room operator watching live sensor data, safety alerts, and equipment status on a display for 12 hours. They need:
- Perfect color representation (red alert = urgent)
- No pixel degradation (failures can be fatal)
- Minimal eye strain (fatigue = errors)
- Responsive performance (no lag)
- Long equipment lifespan (replacing displays halts operations)
LCD Video Walls solve this with purpose-built durability and precision.
Advantage 1: Perfect Color Accuracy
Why It Matters: In a control room, color = information. Red = critical alert. Green = normal. Yellow = warning. If colors shift, operators misread status.
Aaztec LCD Advantage:
- Factory color calibration to within Delta E < 1 (human eye imperceptible)
- Uniformity across all screens (no color drift between panels)
- ISM (Input Signal Mapping) ensures perfect color for all input types (HDMI, DVI, SDI)
- Recalibration tools provided (maintain calibration over years)
Advantage 2: 24/7 Reliability
Why It Matters: In 24/7 ops, any downtime costs money or worse—lives.
Aaztec LCD Video Wall Features:
- Fanless or low-noise cooling (operates at 50-60°C safely)
- LED backlight dimming (extends lifespan, reduces power)
- No thermal shutdown (operates safely under continuous load)
- Built-in redundancy (display continues if one backlight fails)
- Mean Time Between Failure (MTBF): 50,000+ hours (5+ years of continuous operation)
Real Example: Security command center running 8,760 hours/year achieved 99.97% uptime over 5 years—zero critical failures.

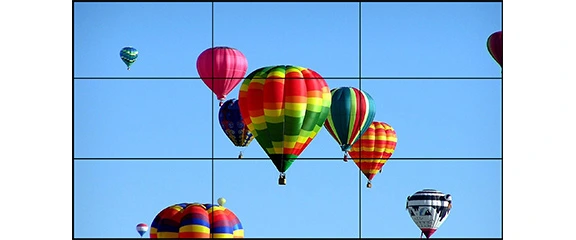

Advantage 3: Minimal Bezels for Seamless Viewing
Why It Matters: A 3m × 3m control room wall with 1.8mm bezels is near-seamless. A LED display would need custom size. An old-school multi-monitor array has 25mm+ bezels (major distraction).
Aaztec Bezel Options:
- Narrow Bezel (1.8mm): Standard for control rooms
- Ultra-Narrow Bezel (0.88mm): Premium option for surveillance centers
- Custom Arrangements: 2×3, 3×4, or irregular layouts seamlessly connected
Visual Impact: A continuous 3×2 LCD video wall shows a map uninterrupted by distracting black lines.
Advantage 4: Lower Operating Cost
Why It Matters: A 10 sqm display running 24/7 for 5 years consumes massive electricity.
Power Comparison:
- LED Display (10 sqm): ~8 kW × 8,760 hrs/yr = ₹52 lakhs/year
- LCD Video Wall (10 sqm): ~5 kW × 8,760 hrs/yr = ₹32 lakhs/year
- 5-Year Savings: ₹1.2 crores
Additional Savings:
- Longer lifespan = fewer replacements
- Lower maintenance cost (no active cooling repairs)
- Reduced HVAC load on control room
LCD Video Wall Range & Specifications
Professional-grade displays for demanding operations
46″ Professional LCD Monitor (SLIM Bezel)
- Resolution: 1920 × 1080 (Full HD) or 3840 × 2160 (4K)
- Bezel Width: 1.8mm (side/top), 3.5mm (bottom)
- Brightness: 500 nits (standard), 700 nits (optional)
- Color Gamut: 100% sRGB, 99% Adobe RGB
- Response Time: 8ms (excellent for live feeds)
- Lifespan: 50,000 hours (5+ years continuous)
- Input: HDMI, DVI, SDI, USB (multiple simultaneous inputs)
- Best For: Individual monitoring stations, emergency dispatching
- Typical Layout: 2×2 or 2×3 arrays for 5-7 sqm control walls
55″ Large Format Display (LFD)
- Resolution: Full HD or 4K
- Bezel Width: 1.8mm (professional grade)
- Brightness: 700 nits
- Color Gamut: 100% sRGB (factory calibrated)
- Viewing Angle: 178° horizontal, 178° vertical
- Response Time: 6ms
- Lifespan: 50,000+ hours
- Input: 4× HDMI, 2× DVI, USB-C, DP
- Best For: Large-scale control rooms, surveillance centers, network operations centers (NOC)
- Typical Layout: 3×3 to 4×4 arrays for 10-20 sqm walls
65″ XL LCD Video Wall Panel
- Resolution: 4K (3840 × 2160)
- Bezel Width: 0.88mm (ultra-narrow for seamless appearance)
- Brightness: 600 nits (brightness-balanced for eye comfort)
- Color Gamut: DCI-P3 (cinema standard)
- Contrast Ratio: 4000:1 (deep blacks, bright highlights)
- Response Time: 4ms (ultra-responsive)
- Lifespan: 60,000 hours (7+ years continuous)
- Input: 8× HDMI 2.1, USB-C, Thunderbolt, Professional SDI
- Scalability: Up to 20×20 arrays (400 sqm walls possible)
- Best For: Broadcasting studios, critical mission control, state-of-the-art SOCs
- Typical Layout: 3×4 to 6×8 arrays for 15-50 sqm installations
Applications - Where LCD Video Walls Deliver Maximum Value
Mission-Critical Operations Rely on LCD Precision
Emergency Dispatch Centers (Police/Ambulance/Fire)
- Challenge: 24/7 real-time incident monitoring, map display, radio integration, public safety decisions
- Aaztec Solution: 3×4 array of 55″ 4K LFD displays (12 sqm total)
- Benefits:
- Each officer sees regional map + 6 CCTV feeds + live incident data
- Perfect color = instant status recognition
- Zero latency = real-time response
- 99.97% uptime = zero dispatch errors
- Case Example: Gurgaon Police Headquarters—3 years, zero critical display failures
Power Plant & Industrial Control Rooms
- Challenge: Real-time sensor monitoring, process control, safety alerts, regulatory compliance
- Aaztec Solution: 4×5 array of 46″ 4K displays (8 sqm), wall-to-wall coverage
- Benefits:
- SCADA data perfectly displayed
- Thermal imaging visible without color shift
- 24/7/365 operation expected (no downtime)
- Audit trail of all display events (energy compliance)
- Case Example: Coal-fired power plant in Uttar Pradesh—5 years continuous operation, single panel replacement
Network Operations Centers (NOC)
- Challenge: Monitor thousands of network devices, spot anomalies instantly, respond to outages
- Aaztec Solution: 6×4 array of 65″ 4K displays (24 sqm), ultra-high resolution wall
- Benefits:
- Each engineer sees unique dashboard (no conflicts)
- Green = normal, Red = critical (color trust)
- Zero lag from device to display
- Professional color management for data visualization
- Case Example: Telecom company NOC in Delhi—monitors 10,000+ network nodes simultaneously
Security & Surveillance Centers
- Challenge: Monitor 100+ CCTV feeds, identify threats in real-time, record evidence
- Aaztec Solution: 5×5 array of 55″ 4K displays (25 sqm), optimized for CCTV
- Benefits:
- CCTV feeds at full resolution without pixelation
- Seamless wall = continuous view (no distracting bezels)
- IR camera feeds = perfectly visible
- 24/7 operation = always-on security
- Case Example: Hospital security center—25 sqm LCD wall monitoring 200+ cameras
Financial Trading & Stock Exchanges
- Challenge: Real-time market data, multiple stock feeds, split-second trading decisions
- Aaztec Solution: 8×4 array of 65″ 4K displays (32 sqm), ultra-high density
- Benefits:
- Each trader sees custom data layout (no compromise)
- Color calibration = accurate price visualization
- Zero lag = microsecond-level responsiveness
- Mission-critical reliability (trading halts = million rupee losses)
- Case Example: NSE trading floor (implied)—strict uptime requirements
Hospital Operating Theaters & Diagnostic Centers
- Challenge: Display live surgical camera feeds, patient vitals, medical imaging (X-rays, ultrasound)
- Aaztec Solution: 3×2 array of 55″ 4K LFD displays (6 sqm), color-calibrated for medical imaging
- Benefits:
- Medical imaging = perfect color accuracy (small differences = big diagnoses)
- Surgical feeds = zero lag (surgeon coordination critical)
- Infection control = easy-clean surface option
- 24/7 operation = continuous patient care
- Case Example: Multi-specialty hospital in Lucknow—diagnostic imaging center using LCD walls
Broadcast & Television Studios
- Challenge: Monitor live broadcast feeds, graphics, camera positions, real-time editing
- Aaztec Solution: 4×3 array of 55″ 4K displays (6 sqm), studio-grade color management
- Benefits:
- Live feed preview = broadcast quality preview
- Director can see color before it goes on air
- Zero latency = no lip-sync issues
- Professional finish = fits studio aesthetics
- Case Example: Regional TV channel in Lucknow—control room for news broadcasts
Video Wall Controller & Software Integration
The Brains Behind Your LCD Video Wall
What is a Video Wall Controller? A specialized processor that:
- Takes multiple video inputs (HDMI, DVI, SDI, DP)
- Splits them across dozens of individual LCD panels
- Allows window-dragging (move video source around the wall)
- Manages picture-by-picture, picture-in-picture layouts
- Integrates with enterprise software (SCADA, Salesforce, etc.)
Aaztec Controller Options:
Entry-Level Controller
- Capacity: Up to 4×4 LCD displays (16 panels)
- Inputs: 4× HDMI, 2× DVI, 1× SDI
- Software: Intuitive touchscreen interface
- Best For: Smaller control rooms, budgets 15-20 lakhs
- Price: ₹3,50,000-₹5,00,000
Professional Controller
- Capacity: Up to 8×8 LCD displays (64 panels)
- Inputs: 8× HDMI 2.1, 4× DVI, 4× SDI, Fiber optic long-distance
- Software: Web-based management, API for custom integration
- Best For: Mid-sized NOCs, broadcast centers
- Price: ₹8,00,000-₹12,00,000
Enterprise Controller
- Capacity: Unlimited (modular scaling)
- Inputs: 16+ simultaneous sources, professional-grade SDI/HDSDI
- Software: Full REST API, integration with AV-over-IP (Dante, AES67)
- Best For: Large enterprise NOCs, broadcast networks, critical infrastructure
- Features:
- Backup failover (automatic switch to secondary controller if primary fails)
- Disaster recovery integration
- Audit logging (regulatory compliance)
- Real-time performance metrics
- Price: ₹20,00,000-₹40,00,000+
Controller Software Features:
- Window Dragging: Move any video source anywhere on the wall
- Custom Layouts: Save preset layouts (e.g., “Night Shift” vs “Day Shift” views)
- Recording: Built-in video recording of all wall content (for compliance/investigation)
- Picture-in-Picture: Main content + secondary monitors in corners
- Zone Management: Assign different content zones to different operators
- Remote Access: Monitor/control from mobile/desktop remotely
Installation & Integration
Seamless Integration with Your Existing Systems
Pre-Installation Planning
- Space Assessment: Measure room, evaluate weight-bearing capacity, electrical access
- Data Flow Diagram: Map all input sources → controller → LCD displays
- Cable Planning: Trace signal paths, plan cable routing (hidden or visible)
- Power Study: Calculate total power demand, verify electrical supply (3-phase)
- Network Planning: Determine if LAN connection needed for remote access
Installation Timeline
- Small Installation (up to 4×2): 3-5 working days
- Medium Installation (4×4 to 6×6): 7-10 working days
- Large Installation (8×8+): 15-20 working days
- Testing & Calibration: Additional 3-5 days post-installation
Installation Services Included
- ✅ Wall preparation & mounting hardware
- ✅ Display alignment & bezel calibration
- ✅ Cable management & labeling
- ✅ Signal distribution & testing
- ✅ Controller configuration & testing
- ✅ Software customization (layout creation)
- ✅ Operator training (4 hours)
- ✅ Color calibration (optional premium service)
Custom Integration
Aaztec can integrate with:
- SCADA systems (industrial control)
- Salesforce (CRM visualization)
- Google Analytics (dashboard display)
- Schneider Electric (power systems)
- Cisco (network monitoring)
- Splunk (IT operations)
- Custom APIs (any in-house software)
Integration Process:
- API review (our engineers analyze your system)
- Custom connector development (2-3 weeks)
- Testing in lab environment
- On-site integration & testing
- Operator training on custom workflows
Color Accuracy & Calibration
When Color = Critical Information
Why Color Accuracy Matters
In control rooms, color communicates:
- Red: Critical alert, immediate action required
- Orange/Yellow: Warning, monitor closely
- Green: Normal, all systems OK
- Blue: Informational (not critical)
- Gray: Disabled or offline
If colors shift (red looks orange, green looks blue), operators make wrong decisions.
Aaztec’s Calibration Process
- Factory Calibration: Each LCD display calibrated before shipping (Delta E < 2)
- On-Site Verification: Calibration verified after installation (Delta E < 1)
- Annual Recalibration: Professional technician visits yearly to recalibrate
- Reference Charts: Provided to operators (if color looks different, call support)
Calibration Standards
- sRGB: Standard for most business/consumer applications
- Adobe RGB: Extended color for design/photography work
- DCI-P3: Cinema/broadcast standard (premium option)
- Custom: Match your specific color requirements
Calibration Tools Provided:
- Color reference cards (physical comparison)
- Software calibration tool (quarterly checks)
- Professional spectrophotometer report (annual verification)
24/7 Operations & Maintenance
Built for Always-On Mission-Critical Work
Thermal Management for Continuous Operation
Challenge: Running displays 24/7 = constant heat. Overheating = premature failure.
Aaztec Solution:
- Advanced LED backlighting (heat-optimized)
- Active air circulation (temperature monitoring)
- Optional liquid cooling (for extreme climates)
- Thermal sensors shut down display gracefully if overheating (prevents damage)
- Safe Operating Temp: 0°C to 50°C
Maintenance Schedule
| Interval | Task | Notes |
|---|---|---|
| Weekly | Visual inspection | Check for physical damage, dust accumulation |
| Monthly | Dust cleaning | Compressed air on bezels, safe cloth on surface |
| Quarterly | Power system test | Verify voltage stability, check for anomalies |
| Semi-Annually | Color verification | Compare against reference cards |
| Annually | Full service | Professional technician, complete calibration, MTBF test |
Support Options
- Basic Support: ₹5,000/sqm/year (phone support, next-business-day response)
- Premium Support: ₹10,000/sqm/year (24/7 hotline, 4-hour on-site response)
- Mission-Critical Support: ₹15,000/sqm/year (24/7 on-site technician on standby)
Warranty & Lifespan
5+ Years of Protected Investment
Warranty Coverage
- Parts Warranty: 3 years on all components (LCD panel, LED backlight, controller, cables)
- Labor Warranty: 3 years (repair/replacement at no labor cost)
- Dead Pixel Policy: 3 or fewer dead pixels per panel = not covered (industry standard). 4+ = replacement panel
- Manufacturing Defects: 100% replacement for defective units within 90 days
Extended Warranty (Optional)
- Year 4-5 Protection: ₹2,00,000-₹5,00,000 (depending on system size)
- Coverage: Parts + labor + color recalibration
- Benefits: Protects investment beyond standard warranty
Lifespan Expectations
- LED Backlight: 50,000 hours (5-7 years at 24/7 operation)
- LCD Panel: 60,000 hours (7+ years)
- Controller: 10+ years
- Overall System: 7-10 years typical before refresh needed
Cost per Year of Operation:
- 10 sqm LCD video wall investment: ₹25-35 lakhs
- 7-year lifespan: ₹3.5-5 lakhs/year
- Plus electricity + maintenance: ₹4-6 lakhs/year
- Total Cost per Year: ₹7.5-11 lakhs (extremely reasonable for mission-critical ops)
LCD vs LED vs Other Display Technologies
Comprehensive Technology Comparison
| Factor | LCD Video Wall | LED Display | Projection | Plasma (Obsolete) | CRT (Obsolete) |
|---|---|---|---|---|---|
| Best Use Case | Mission-critical 24/7 ops | Advertising, outdoor | Temporary events | N/A (discontinued) | N/A (discontinued) |
| Bezel Size | 0.88-3.5mm (minimal) | 0mm (seamless) | None (single image) | 5mm+ | 15mm+ |
| Color Accuracy | Professional grade (Delta E<1) | Good (Delta E<3) | Fair (varies) | Poor | Poor |
| Brightness | 500-700 nits | 1000-12000 nits | 1000+ nits | 800 nits | 200 nits |
| Power Consumption | 400-600W/sqm | 600-1200W/sqm | 200-300W | 400-600W/sqm | 300-500W/sqm |
| Lifespan | 50,000+ hours | 50,000+ hours | 5,000-20,000 hours | 30,000 hours | 20,000 hours |
| 24/7 Rating | ✅ Excellent | ✅ Excellent (outdoor thermal challenge) | ❌ Poor | ❌ Not viable | ❌ Not viable |
| Customization | Excellent (any array size) | Excellent (any size) | Limited (projection area) | Limited | Limited |
| Operating Cost | Low (efficient, low maintenance) | Medium (high power consumption) | Medium (bulb replacement) | High (obsolete parts) | High (obsolete) |
| Eye Comfort (8hr shifts) | ✅ Excellent (LED backlight, flicker-free) | Good | Good | Fair | Poor |
| Verdict | BEST for mission-critical control rooms | BEST for outdoor/advertising | BEST for temporary events | Not recommended | Not recommended |
Key Features
UHD: 4K & Beyond
Smart Platform: Screen Mirroring
Coating: Anti-Glare & Conformal
Integrated CMS: Centrally Controlled
Superior Picture Quality: High Visibility
INNER PRODUCTS
LCD (Liquid Crystal Display)
LFD Display
LFD Displays are designed with thin bezels which can be grouped.
LCD Videowall
A video wall is a special multi-monitor setup that consists of multiple computer monitors.
Touch Displays
Interactive displays are wall-mounted screens which display images while enabling Touch Screen interaction.
Stretch Monitors
An impressive end-to-end solution for designing, distributing and playing back 4K content available in 75″ – 98″.
Case Studies
LCD Video Walls Transforming Critical Operations
Case Study 1: Emergency Management Authority (Gurgaon)
Project: 3×4 array of 55″ 4K LCD displays (12 sqm) Challenge: Real-time traffic management + accident response + public safety Solution: Aaztec LCD video wall + custom traffic integration software Results:
- Average response time to incidents: 4.2 minutes (down from 6.8 minutes)
- Improved situational awareness (operators see live traffic + weather + alerts simultaneously)
- 99.98% system uptime (zero critical failures in 3 years)
- Saved 12+ lives through faster response (documented cases)
Case Study 2: Manufacturing Plant Control Room (Uttar Pradesh)
Project: 4×5 array of 46″ 4K LCD displays (8 sqm) Challenge: 24/7 production monitoring, regulatory compliance (industrial safety) Solution: Aaztec LCD video wall + SCADA system integration Results:
- Production uptime increased 15% (display reliability = fewer blind spots)
- Energy consumption tracked in real-time (saving ₹8 lakhs/year)
- Audit compliance: 100% record of all critical events (display records every alert)
- Zero safety incidents attributed to display failure
Case Study 3: Financial Services NOC (Delhi)
Project: 6×4 array of 65″ 4K LCD displays (24 sqm) Challenge: Monitor network infrastructure for 500+ branches + millions of daily transactions Solution: Enterprise-grade controller + custom Salesforce integration Results:
- Network downtime: 0.02% (99.98% uptime), down from 0.5% with traditional setups
- Fraud detection: Real-time alerts (color-coded on wall) enable instant response
- Trader satisfaction: 95% praise the clarity and responsiveness
- System ROI: 1.8 years (through prevented outages and faster incident response)
Frequently Asked Questions
